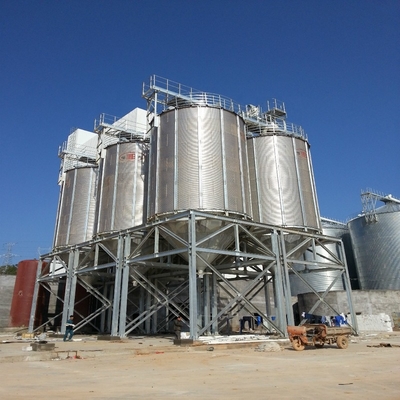

Steel hopper bottom silo installed for storing awn of wheat:
Silo model: TCZK07306
Silo diameter: 7.334m
Silo volume:368m3
Height of silo body:6.79m
Total Height of silo: 13.58m
All silos include
Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)
l Roof Natural vents
l Roof guardrail
l Roof manhole
l Roof ladders
l Silo door
l Silo door platform
l Inside and outside ladders on silo body
Features of steel hopper bottom silos:
Automatic-flow unloading, save resources and costs, Hopper angles can be 45° and 60°.
Boda Provides galvanized steel silo with capacity ranging from 5t to 1000t. Could be movable; easily to be installed. Do not need a serious concrete, labor and energy cost
We manufacture hopper bottom silos from 5t to 1000t capacity in a wide variety of sizes.Hopper bottom silos are discharged automatically with qualified unloading systems.They can store any flowable commodity from grain,feed,seed,wooden pallets,plastic pellets and sawdust.
Do not need a serious concrete, labor and energy cost. They are designed and
manufactured with different hopper angles. Usually hopper angles can be 45° and 60°,
among which 60° conical bottom is usually used to store larger pellet and powder
materials with high viscosity.
If frequent unloading of stored grain is necessary, hopper bottom silos shall be
choosen. Hopper angles may vary according to grain type to be stored, silo diameter
and usage intention. Hopper structure prevents loss of time and money during the
unloading period. BODA silo is proud of manufacturing silos from the wide corrugated sidewall sheet
in the world (1.12mm).
|
Hopper Bottom Steel Silo Main Technical Specifications (Grain Density:0.75t/m3) |
||||||||
|
Capacity |
50 ton |
100 ton |
150 ton |
200 ton |
300 ton |
500 ton |
1000 ton |
1500 ton |
|
Model |
TCZK 03605 |
TCZK 04507 |
TCZK 05507 |
TCZK 06406 |
TCZK 06410 |
TCZK 08210 |
TCZK 10013 |
TCZK 12812 |
|
Diameter(m) |
3.667 |
4.584 |
5.5 |
6.417 |
6.417 |
7.334 |
10.084 |
12.834 |
|
Total Height(m) |
9.56 |
12.53 |
13.25 |
12.85 |
17.33 |
18.78 |
23.58 |
23.62 |
|
Volume(m3)
|
69 |
150 |
222 |
274 |
419 |
718 |
1380 |
2139 |
Economic Hopper Bottom Silos are ideal for low capacity grain storage
requirements. These types, which provide easier unloading, are manufactured with
different diameters from 2,75 m. to 4.584m.maximum capacity of which is 243m³.
Commercial Hopper Bottom Silos' diameters may vary from 4,584 m. to 11.00 m.
and maximum capacity is 1800 m³. Specially designed strong hopper structure bears
the silo loads efficiently. All design details are considered for the safe grain storage
. High sensitive temperature monitoring system is one of the unavoidable
equipments for efficient stocking.
Normally, the zinc coated of silo body is 275g/m2, other parts of silos and accessories are painted after processing,in which way can lower the cost. Though galvanized equipments cost a higher price, they can bearing a longer time, about more than 20years.
